MaxFlo Motorsport Oil Filter Sandwich Plate

MaxFlo Motorsport Oil Filter Sandwich Plate

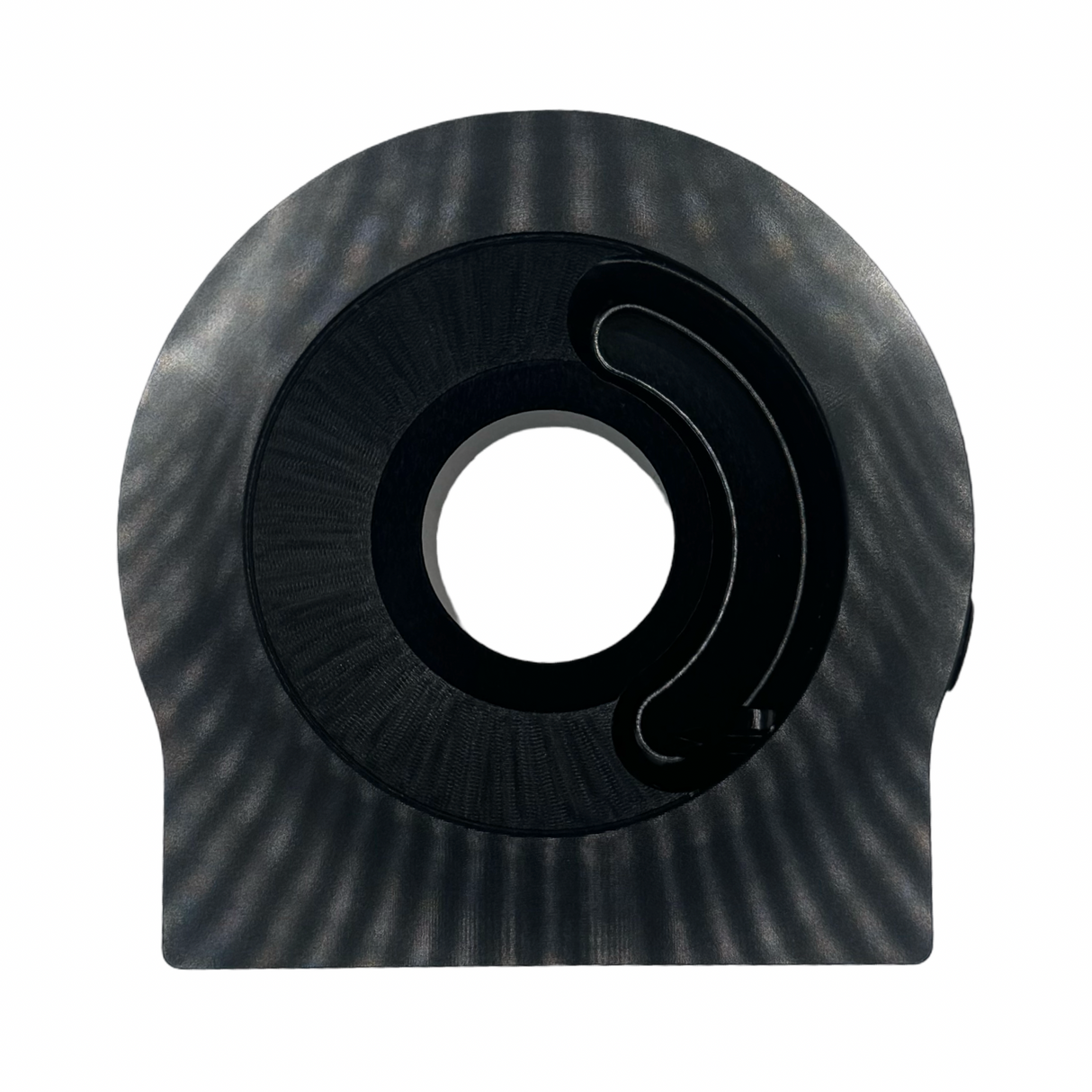

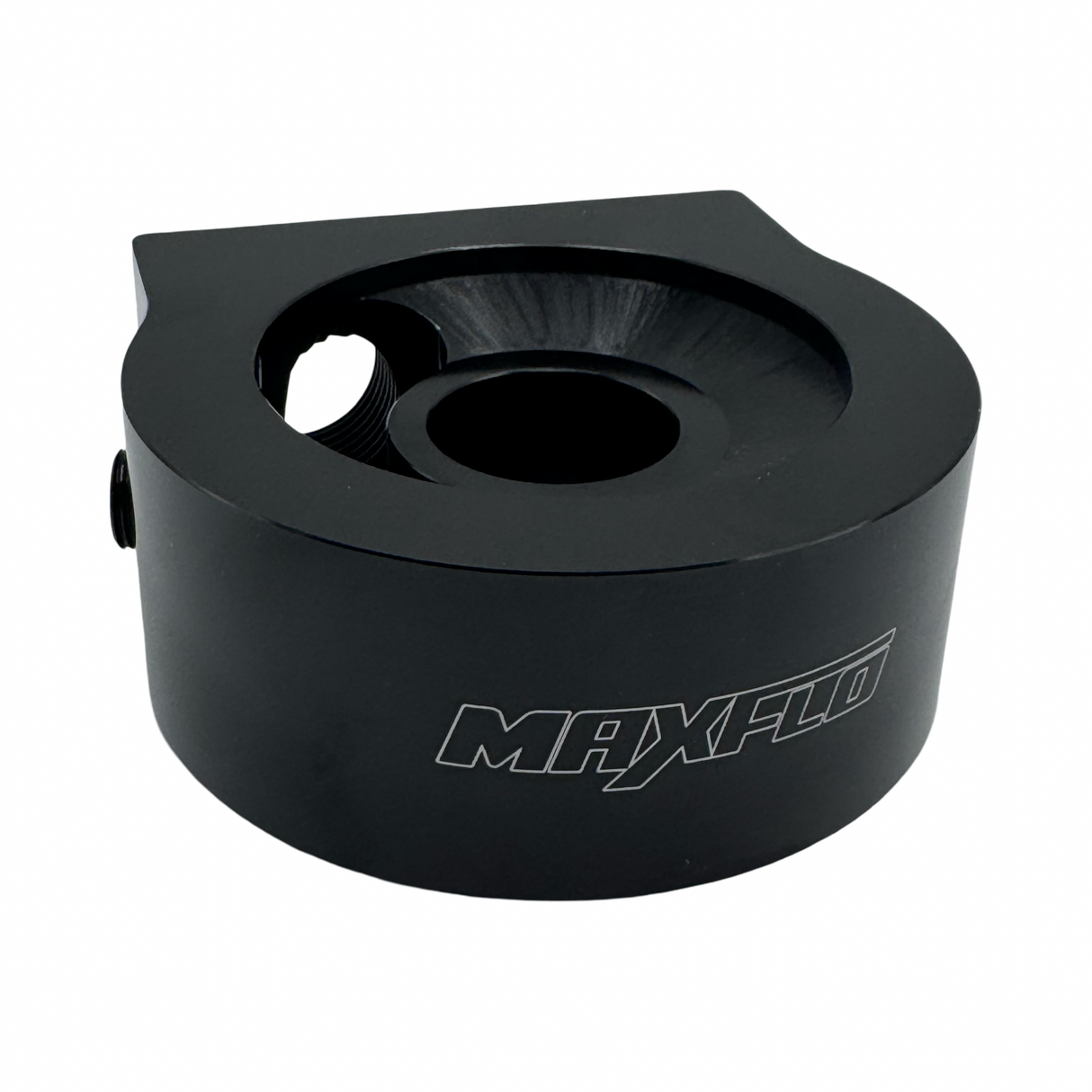

Our NEW universal billet oil cooler sandwich plate is designed to sit in-between your oil filter and engine block and also allows an adaptation of a gauge sender or sensors to be installed at the engine.

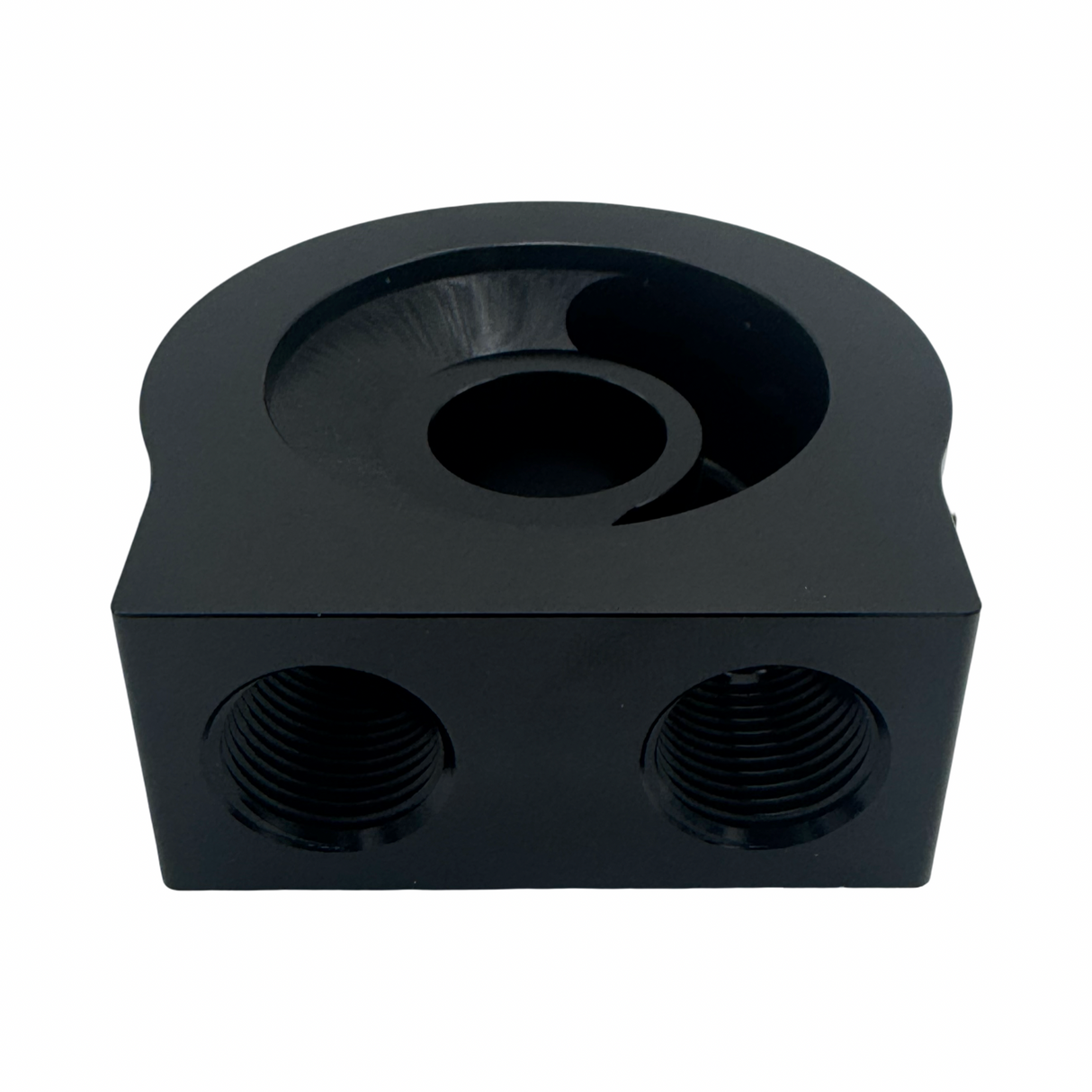

They are manufactured with the highest quality billet 6061 aluminium and hard anodised black to avoid corrosion. Designed with 2 x -AN10 ORB inlet/outlet ports for running the engine oil to and from the sandwich adapter, also included in the design are 2 x 1/8" NPT ports to run a gauge or sensor and an extra thick o-ring for optimum sealing.

This kit includes the below thread inserts that suit most makes and models,
In most cases your factory oil filter will work with this sandwich adaptor. however it is a universal fitment item and modifications or adaptors may be required.

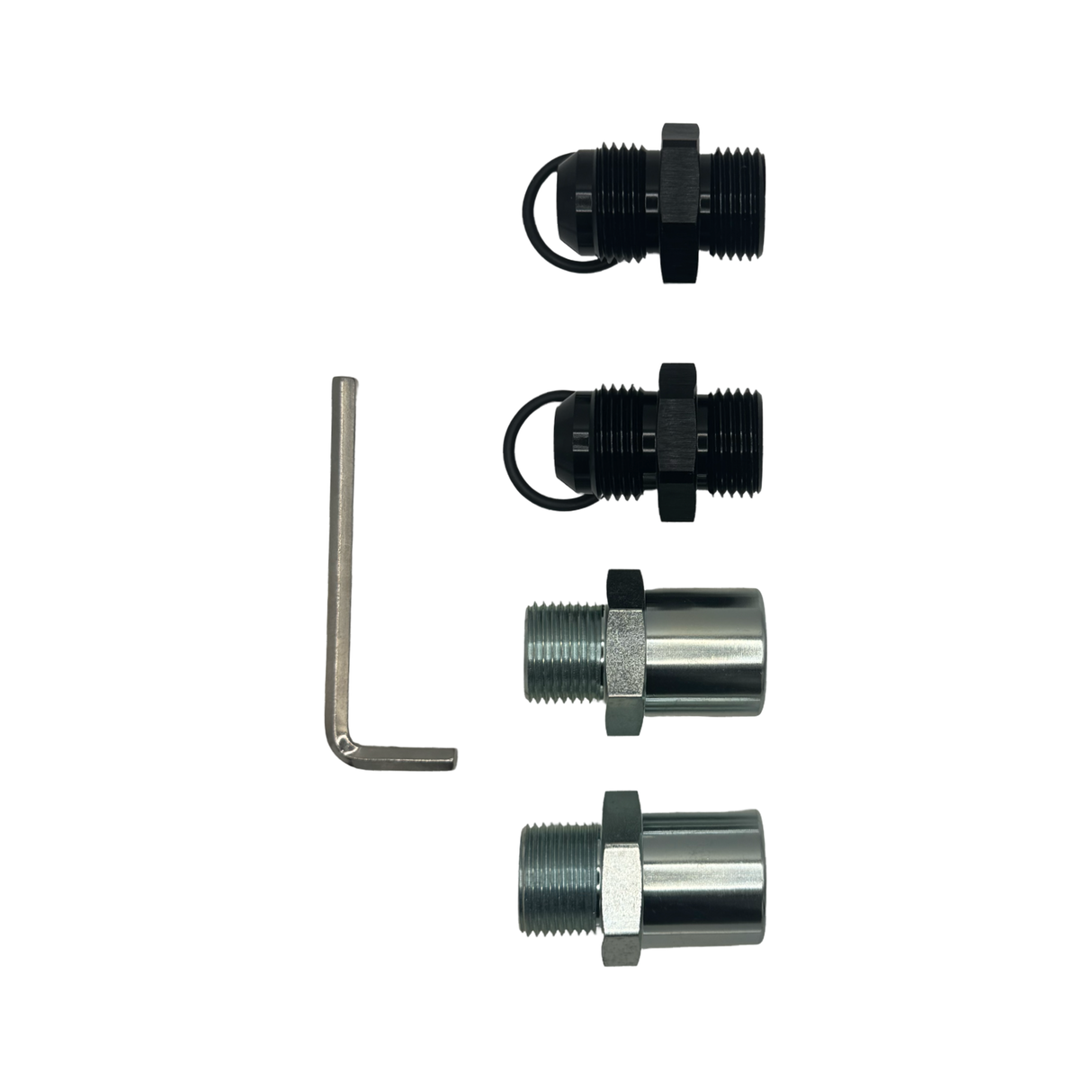

• 2 x -10AN ORB Adaptors
• 3/4"-16 thread insert
• M20*1.5mm thread insert

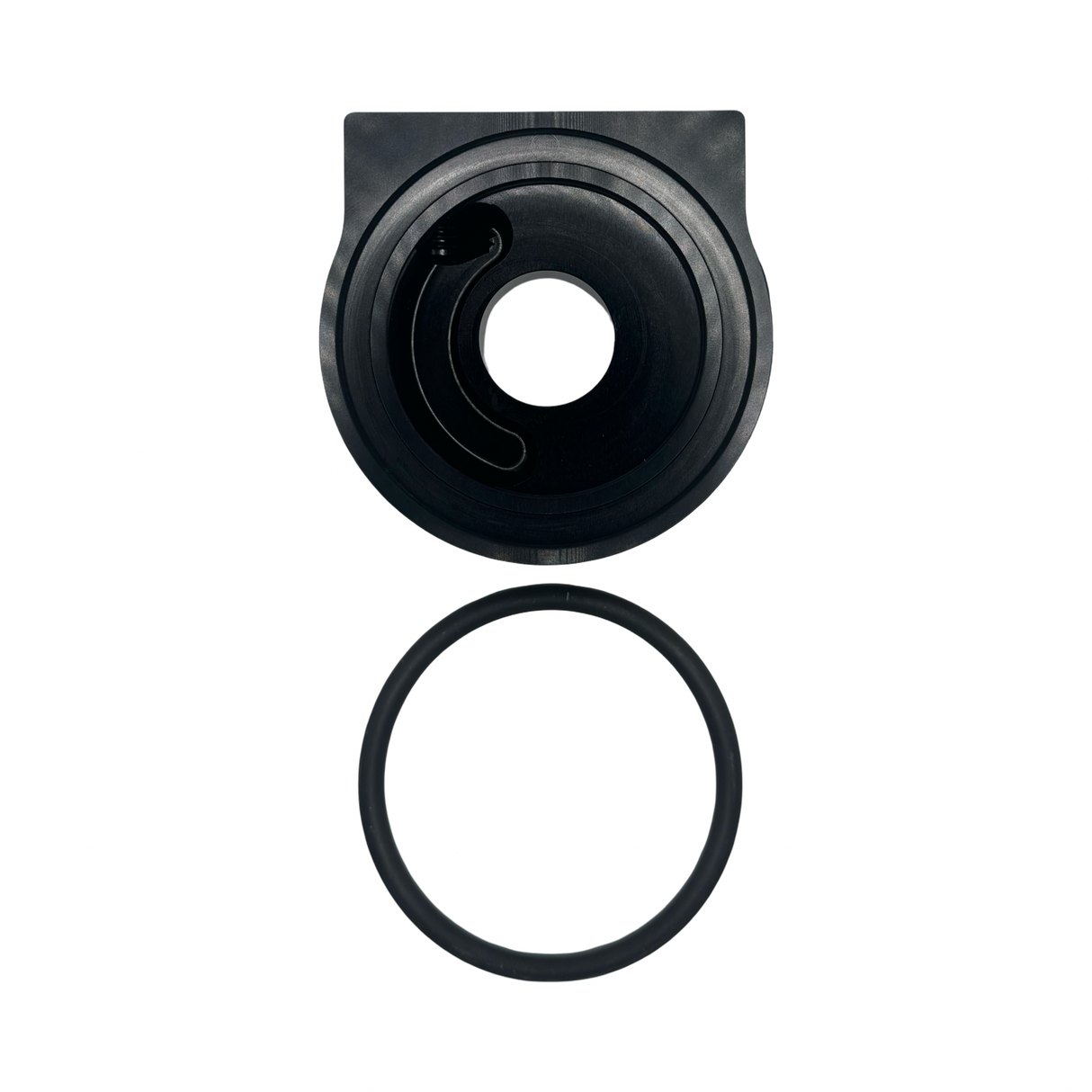

Seal:

• I.D: 65mm (2-7/16')
• O.D: 71mm (3-3/8')
